Quality of Service
3-167
3
Web – Click QoS, DiffServ, Policy Map to display the list of existing policy maps. To
add a new policy map click Add Policy. To configure the policy rule settings click Edit
Classes.

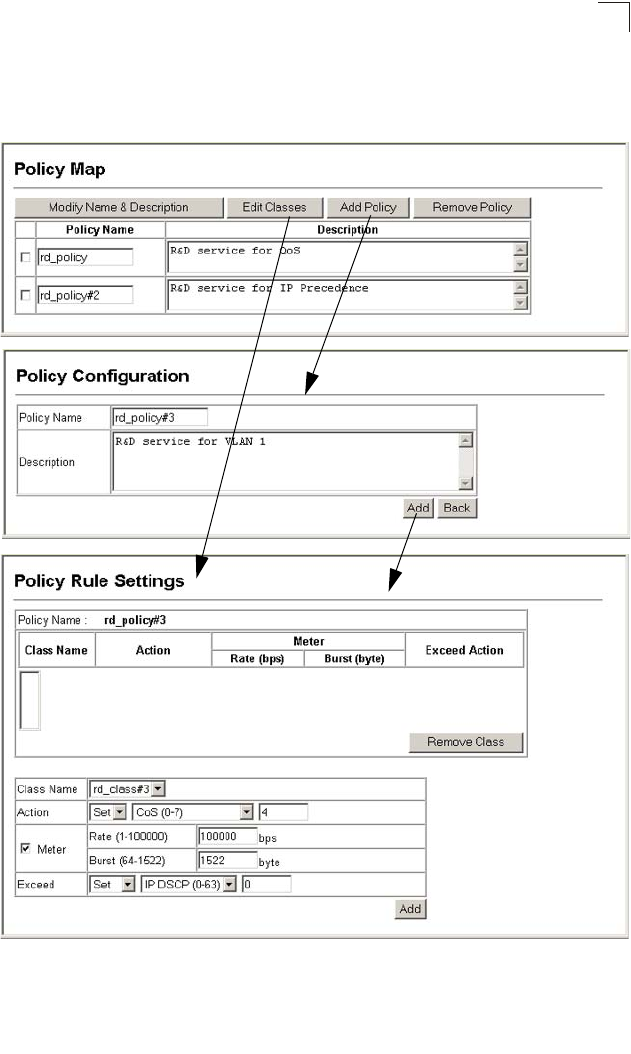

Figure 3-96 Configuring Policy Maps
