Configuring the Switch
3-122
3
Web – Click Spanning Tree, STA, Configuration. Modify the required attributes, and
click Apply.

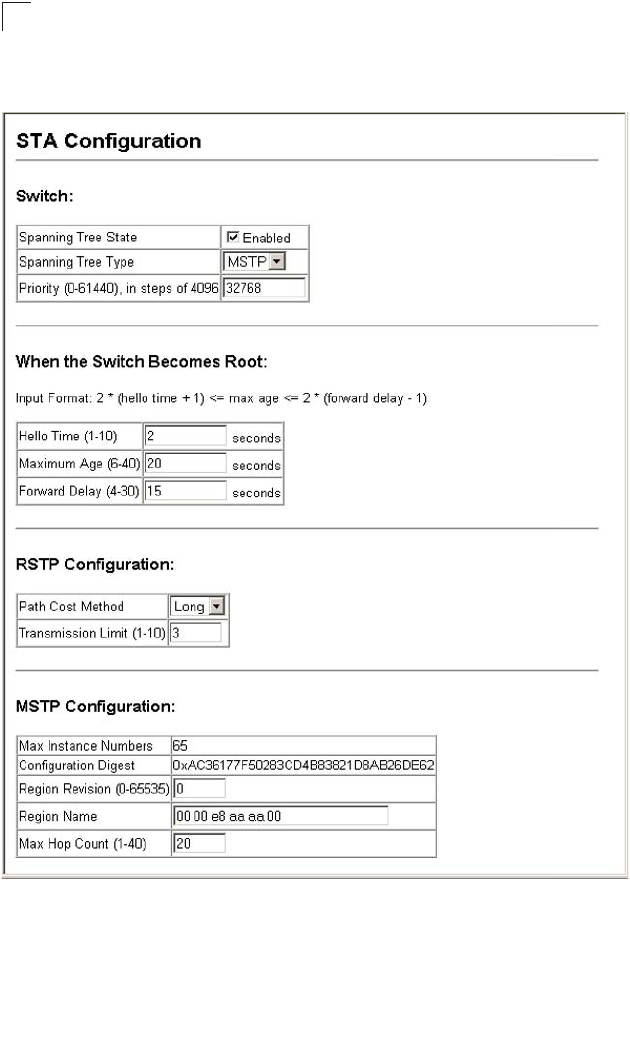

Figure 3-69 STA Global Configuration
